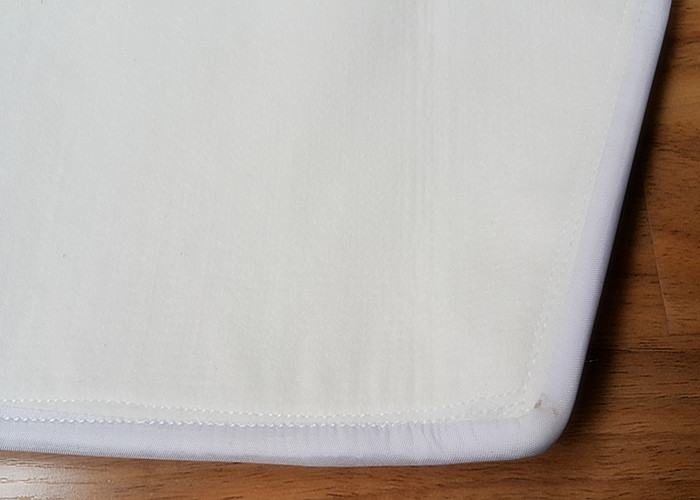

Micron Nonwoven Needle Felt Liquid Filter Bag , Anti Static Polyester Water Filter Bag
Quick Detail:
Material : PP or PE,polyester, polypropylene
Micron rating : 0.5um ~800um
Good anti-abrasion
High temperature grade
Anti-acid ,anti-alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specifications:
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
| Material | PE,PP,NMO,PTFE |
| Cuff | PP Lock, Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be customized |
| PRODUCT CODE: |
| Component | Elongation@50N/5cm |
| Fibre | 100%PET | Longitudinal(%) | Transverse(%) |
| Scrim | 100%PET | <3% | <3% |
| Weight(g/m²) | 500 | Operating Temperatures |
| Thickness(mm) | 2.0 | Continuous(°C) | Surge(°C) |
| Density(g/cm3) | 0.25 | 130 | 150 |
| Mean Air Permeability
(L/dm².min) | 150-250 | Max Dry Shrinkage in 90 minutes:(150°C)(%) | <1% |
| Breaking Strength | Surface Treatment | Heat Setting, Singed,
Represent add stainless
steel fibers |
| Longitudinal(N) | Transverse(N) |
| >1000 | >1200 |
| Material Physical and chemical Performance |
| Material | PE | PP | MO | RY | PTEE |
| Strong Acid | Very good | excellent | poor | general | excellent |
| Weak Acid | Very good | excellent | general | good | excellent |
| StrongAlkalis | poor | excellent | excellent | Very good | excellent |
| Weak Alkalis | Very good | excellent | excellent | good | excellent |
| Solvents | Very good | poor | good | good | Very good |
| Oxidising Agent | good | poor | general | good | Very good |
| Abrasion Resistance | Very good | very good | excellent | general | poor |
Notices:
1. Materials avaliable: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and custom size.
Applications:
1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.
FAQ
1.How to Order?
2.How to assurance the product quality?
We will send the samples to you conform, and will produce the samples according to your satisfaction.
3.Can you provide free sample ?
Normally, our product need sample fee, But we will charge your sample fee as less as we can, even sometimes free sample available.However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...
4.Generally, what time the products can make delivery
In normal circumstances, the products can be delivered within two weeks.
5.Which shipment available?
Normally, we ship goods by sea,air and express. Special requirement also acceptable
By sea to your nearest sea port
. By air to your nearest air port
By express(UPS,DHL.FEDEX,TNT...) to your door
Remarks
1) The length of dust filter bags can be customized.
2) If your dust filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.
3) Please send us your inquiry specification detail by email for quotation, thanks my friends.
